Stainless Steel Push Pads

Vandal-resistant stainless steel wireless and hardwired push pads.

Available in a wide variety of sizes, shapes and styles.

Backlit switch range also available.

  • Key Functions
  • Technical Specs
  • Accessories
  • Downloads
  • Available in a Range of Styles & Sizes

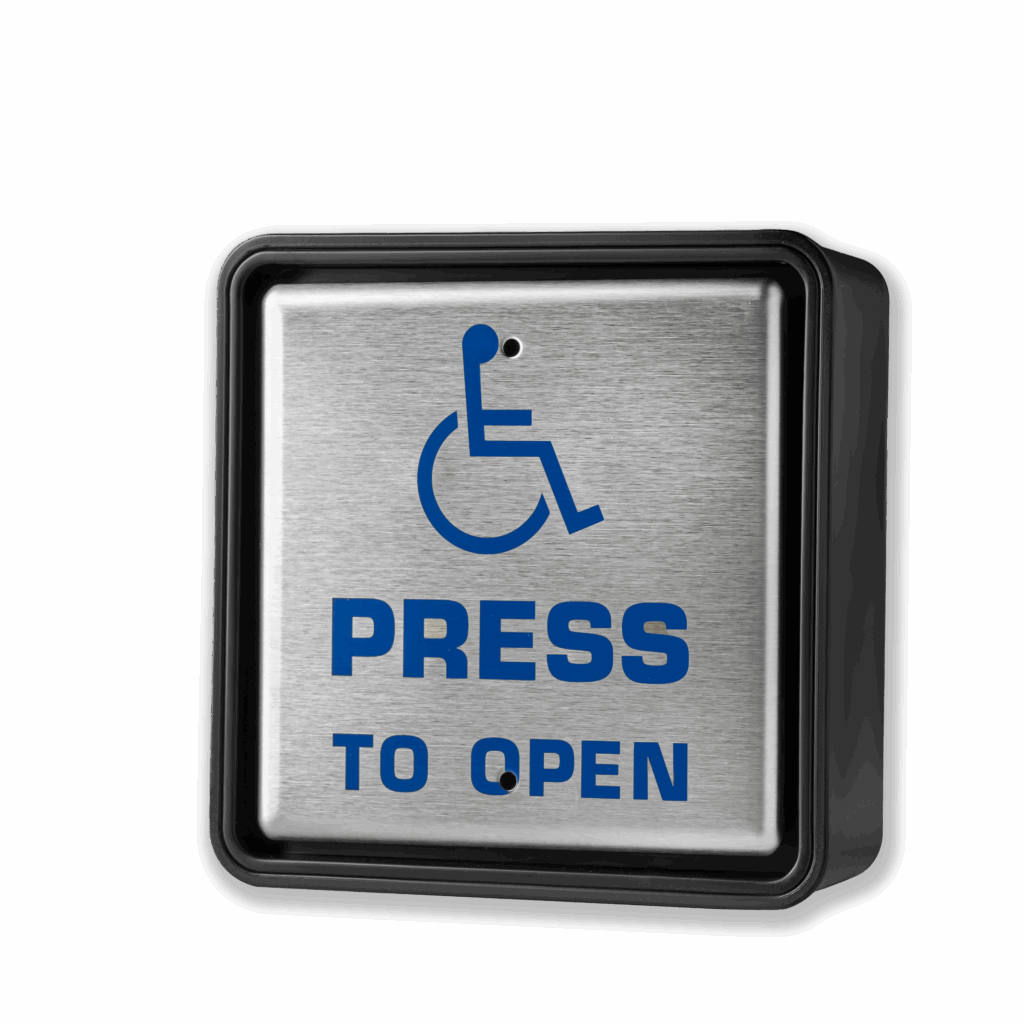

    • 152 x 152mm Hardwired & Wireless
    • 115 x 115mm Hardwired & Wireless

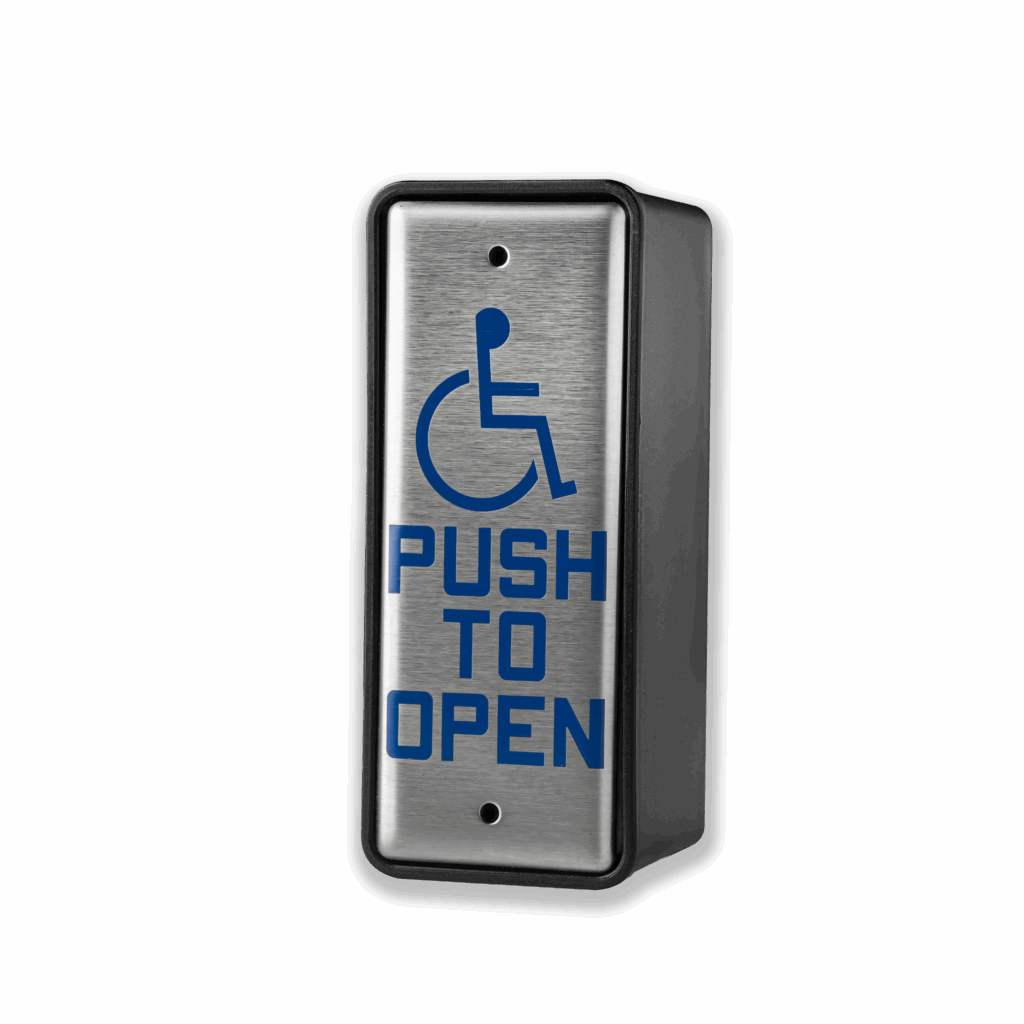

    • Jamb Style (115 x 38mm) Hardwired & Wireless
    • Backlit Switch range also available
  • Tamper Resistant

    • Manufactured from high grade stainless steel and assembled without visible fixings
  • Durable

    • Tested to in excess of 10 million activation cycles
  • Standard Engraving

    • Available in a wide variety of standard engraving options
  • ModelStainless Steel Hardwired + Wireless Push Pads
  • Detection MethodPush Pad Switch
  • Sensor Dimensions115mm x 115mm, 152mm x 152mm and 115mm x 45mm versions available
  • Power Supply12 VDC or 24 VDC/VAC Hardwired, 9 VDC (Battery) – Wireless Transmitter
  • Operating Temperature-40°C to 60°C (-40° F to 140° F)
  • Available Colours18-gauge brushed stainless steel

4S1

4 inch stainless steel faceplate

4UFK

Recess mounting kit for 4 inch switch series

4UO

4 inch back box

6UO

6 inch back box

JJO

Jamb style back box

433MHz-TX

433Mhz Transmitter (Ultra-small)

433MHz-RX

433Mhz Receiver
