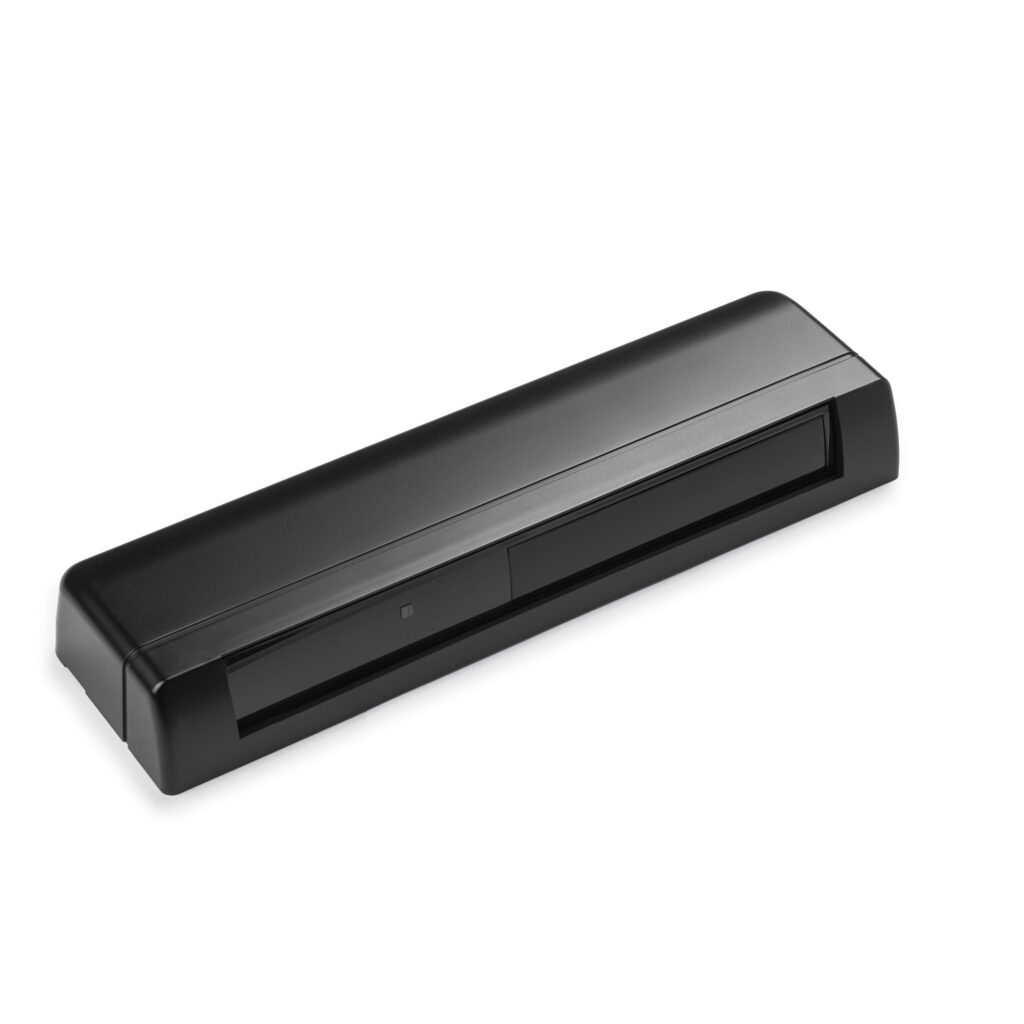

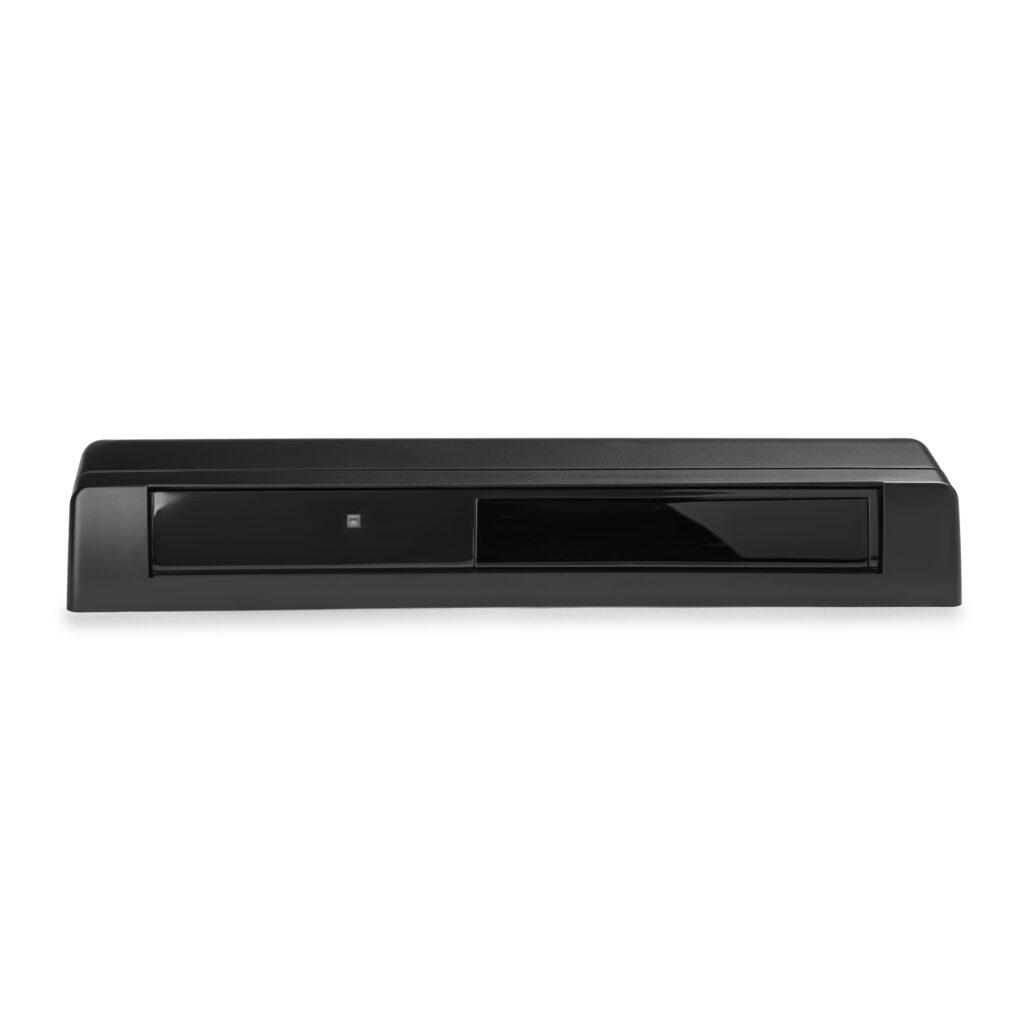

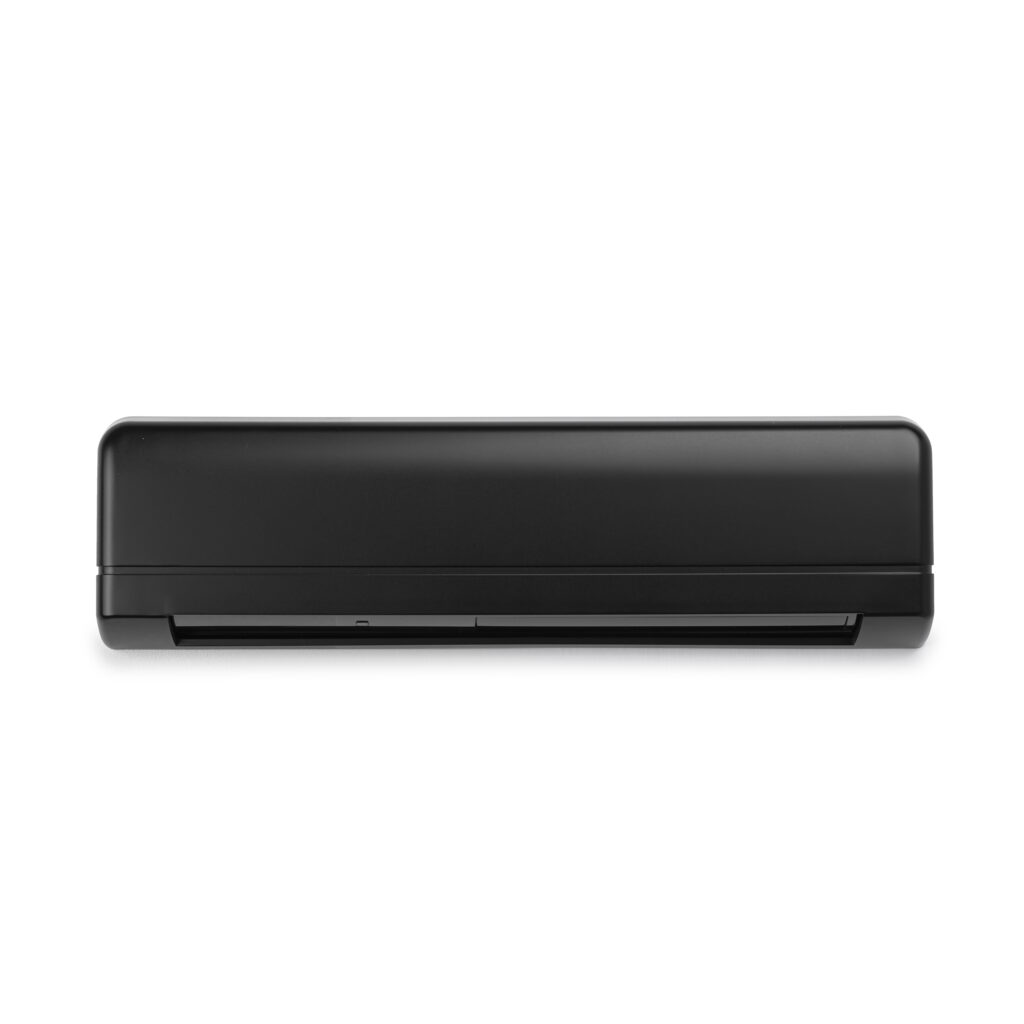

Compact Sensor Housing
- Smallest combined door activation and safety sensor on the market at 210mm(W) x 59mm(H) x 28.5mm(D)
- Requires only 37mm of vertical clearance for internal mounting within door engine covers or false ceilings with the HA-14 internal mounting bracket.
-
Pedestrian Safety
- Double row infrared safety curtain protects pedestrians from dangerous door movements
- Presence timer settings prevent door closures on static pedestrians
- EN16005 complaint version available with monitored safety
-
Reduced Building Energy Losses
- Accurately adjustable detection area reduces false door activations in busy urban environments
-
Cost Efficient
- One sensor can be used as a door activation + door close safety sensor or just as a door open safety sensor
- Extremely easy to install
- Model3H-IR14: Single Relay Activation + Safety. 3H-IR14C: Dual Relay Activation + Safety with Monitored Safety
- Detection MethodActive Infrared Detection
- Installation Height2000mm to 3000mm (6.5ft to 10ft)
- Sensor Dimensions210mm (W), 59mm (H), 28.5mm (D)
- Presence Timer2s, 30s, 1min and infinity
- IP Rating54
- Power Supply12 - 24V AC/DC ± 10%
- Power ConsumptionAC12V- 1.3[VA] (Max); DC12V- 65[mA] (Max); AC24V- 1.5[VA] (Max); DC24V-35[mA] (Max)
- Operating Temperature-20°C to +60°C, (-4°F to 140°F)
- WeightApprox 180g
- Available ColoursBlack Product Code = 3H-IR14/BL & Silver Product Code = 3H-IR14/S
WC_IR/BL
Weather cover
HA-14
Internal mounting bracket 3H-IR14 sensor series
UTB
Under transom bracket
BF-2 Spotfinder
Infrared spot finder tool
