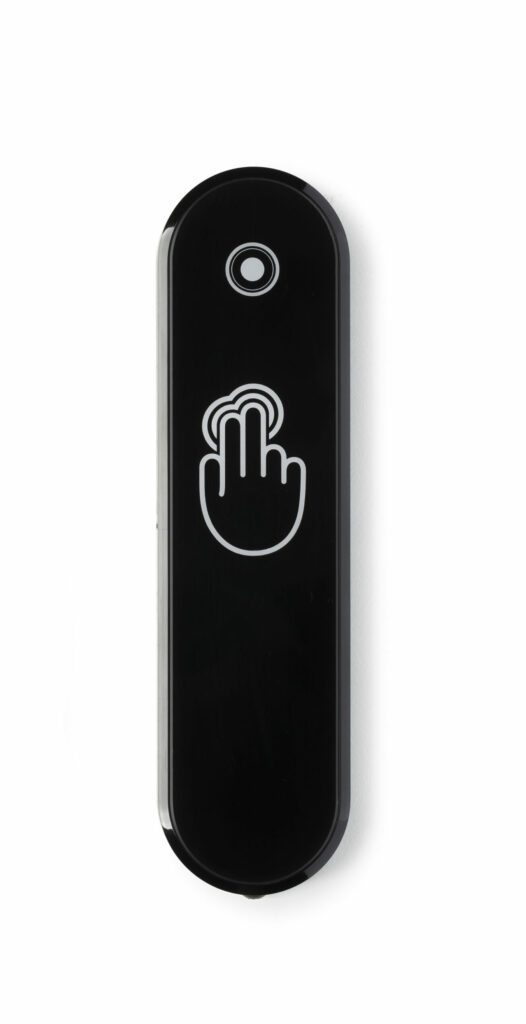

Slim profile, wireless (2.4GHz), automatic door activation switch.

Illuminates upon activation.

24 month battery life.

  • Key Functions
  • Technical Specs
  • Downloads
  • Slim Design

    • Slim design for screw or tape mounting to the automatic door profile.
    • 40mm(W) x 150mm (H) x 13mm (D)
  • Radio Controlled

    • Operates at a frequency of 2.4GHz
    • An unlimited number of WT-400 transmitters can be registered to one WR-24 receiver.
  • Simple to Install

    • Simple push button pairing of any number of WT-400 transmitters with a WR-24 receiver.
    • Batteries supplied, lasting up to 24 months
    • Double sided tape provided to ease installation and increase waterproofing properties
  • Dual Function

    • Use as an automatic door activator or as a switch to hold the door open.
  • ModelWT-400 Transmitter + WR-24 Receiver (sold separately)
  • Detection MethodPush Pad - Wireless
  • Sensor DimensionsWT400 = 40mm(W) x 150mm(H) x 13mm(D)
  • IP Rating54
  • Power SupplyWT-400 = 1.5V x 2 (size AAA batteries), WR-24 = DC 12-30V/ AC 12-24V
  • Power ConsumptionUnder 100mA
  • Operating Temperature -20˚C to 55˚C (-4˚F to 122˚F)
